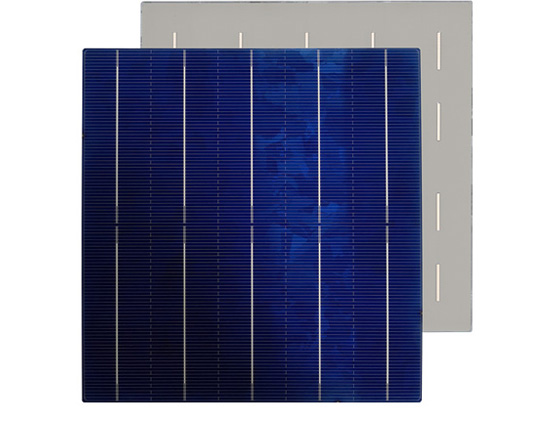

| Cell type | Polycrystalline solar cell (P002) |
| Size | 157 × 157 ± 0.5 mm |
| Thickness | 200 ± 20 µm |

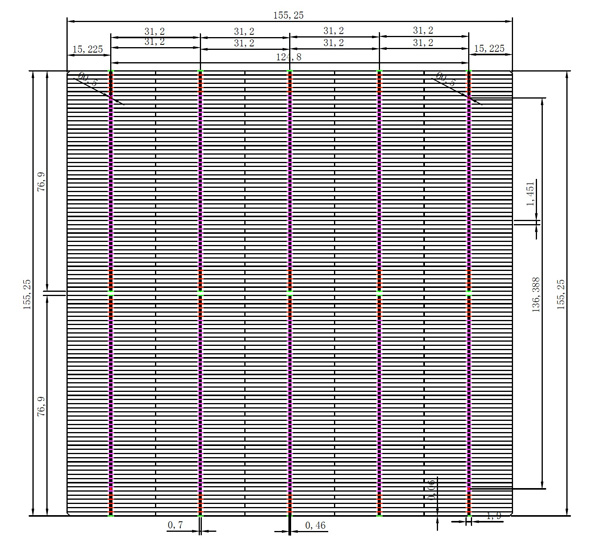

| Front side | 5BB - 0.7 mm, blue silicon nitride antireflection coating |

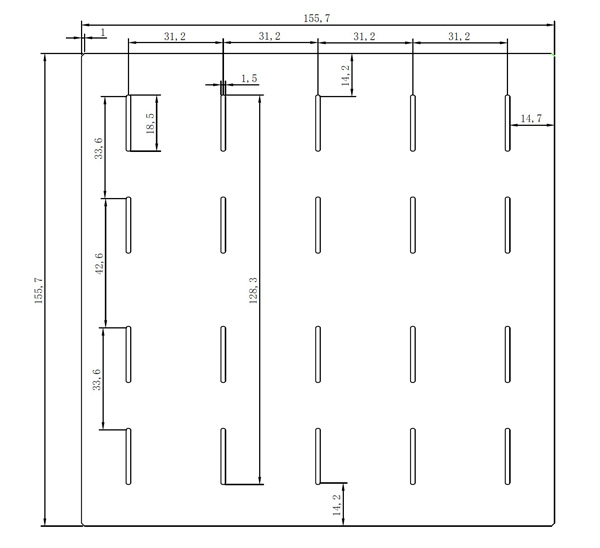

| Back side | 1.5 mm back electrode, aluminum back surface field |
Open-circuit voltage |
-0.38%/k |
Short-circuit current |
+0.06%/k |
Max power |
-0.37%/k |
(Test condition: AM 1.5, 1000 ± 50 W/m2, 25 ± 2 °C)
| Efficiency | Pmpp [W] |
Umpp [V] |
Impp [A] |
Uoc [V] |
Isc [A] |
FF [%] |
Eta Avg |
|---|---|---|---|---|---|---|---|
19.0% |
4.676 |
0.554 |
8.437 |
0.664 |
8.910 |
81.54 |
19.04 |
18.9% |
4.653 |
0.553 |
8.414 |
0.642 |
8.887 |
81.52 |
18.94 |
18.8% |
4.630 |
0.552 |
8.390 |
0.641 |
8.862 |
81.49 |
18.85 |
18.7% |
4.606 |
0.550 |
8.370 |
0.640 |
8.842 |
81.44 |
18.75 |
18.6% |
4.582 |
0.549 |
8.350 |
0.638 |
8.823 |
81.37 |
18.65 |
18.5% |
4.558 |
0.548 |
8.328 |
0.637 |
8.801 |
81.30 |
18.56 |
18.4% |
4.535 |
0.546 |
8.305 |
0.635 |
8.779 |
81.24 |
18.46 |
18.2% |
4.502 |
0.544 |
8.277 |
0.634 |
8.755 |
81.11 |
18.32 |
18.0% |
4.449 |
0.541 |
8.227 |
0.631 |
8.702 |
81.07 |
18.11 |
Intensity [W/m2] |
Vpm |
Ipm |
1000 |
1.00 |
1.00 |
900 |
0.99 |
0.90 |
800 |
0.98 |
0.80 |
500 |
0.96 |
0.50 |
300 |
0.92 |
0.30 |
200 |
0.90 |
0.20 |
