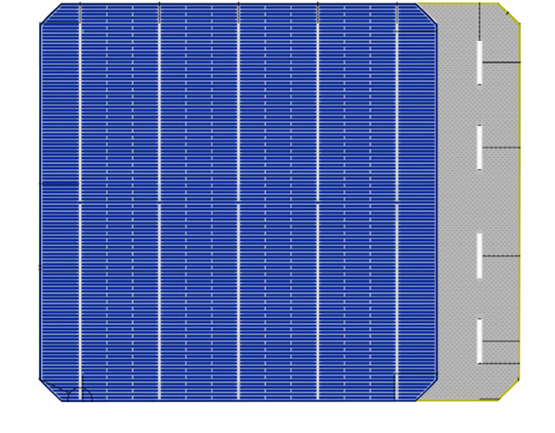

| Cell type | Monocrystalline PERC solar cell (P006-SE) |
| Size | 156.75 × 156.75 ± 0.25 mm |
| Thickness | 200 ± 20 µm |

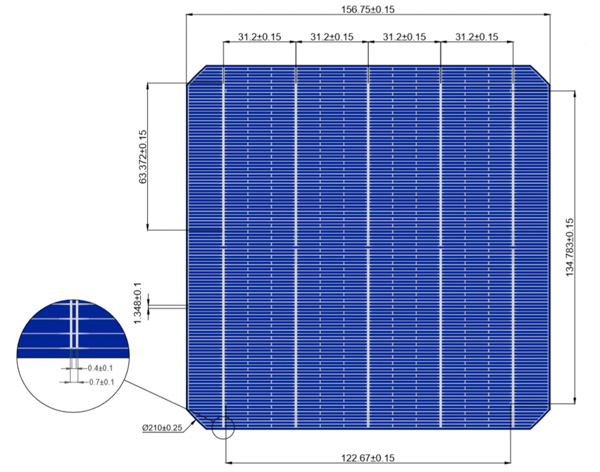

| Front side | 5BB - 0.7 mm, blue silicon nitride antireflection coating |

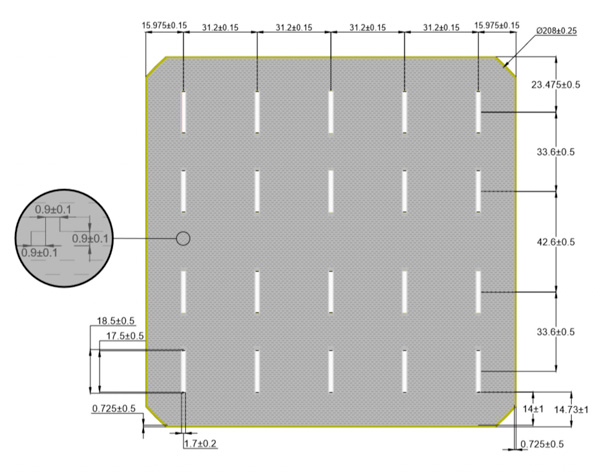

| Back side | 1.7 mm back electrode, aluminum back surface field |
Open-circuit voltage |
-0.37%/k |
Short-circuit current |
+0.068%/k |
Max power |
-0.381%/k |

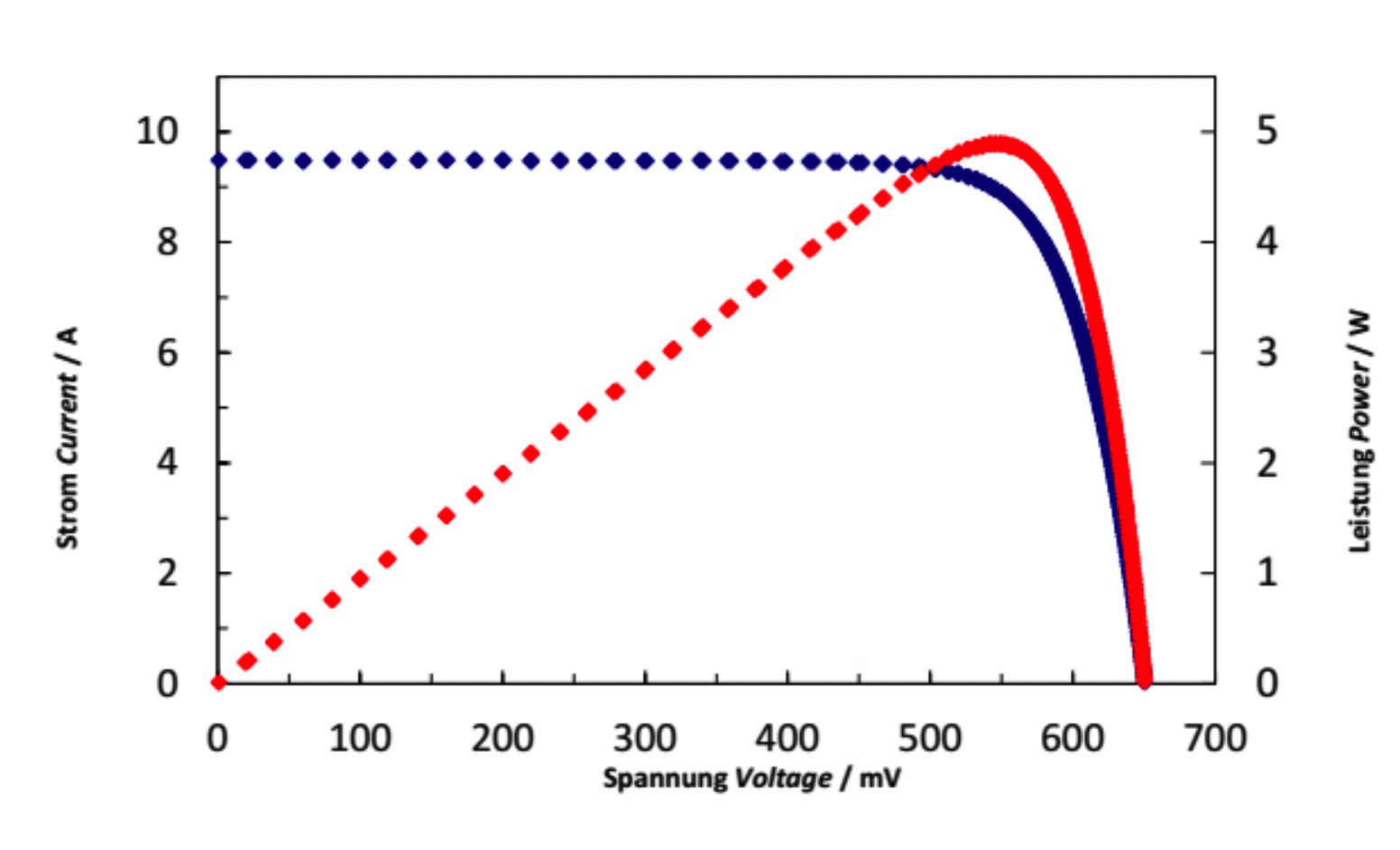

(Test condition: AM 1.5, 1000 ± 50 W/m2, 25 ± 2 °C)
| Efficiency | Pmpp (W) |
Impp (A) |
Umpp (V) |
Isc (A) |
Voc (V) |
FF (%) |
|---|---|---|---|---|---|---|
22.2% |
5.42 |
9.233 |
0.587 |
9.710 |
0.677 |
82.45 |
22.1% |
5.40 |
9.215 |
0.586 |
9.675 |
0.677 |
82.44 |
22.0% |
5.38 |
9.179 |
0.586 |
9.662 |
0.676 |
82.42 |
21.9% |
5.35 |
9.150 |
0.585 |
9.639 |
0.674 |
82.38 |
21.8% |
5.33 |
9.129 |
0.584 |
9.612 |
0.674 |
82.33 |
21.7% |
5.30 |
9.094 |
0.583 |
9.584 |
0.673 |
82.24 |
21.6% |
5.28 |
0.078 |
0.582 |
9.566 |
0.672 |
82.15 |
21.5% |
5.25 |
9.060 |
0.580 |
9.559 |
0.670 |
81.99 |
21.4% |
5.23 |
9.031 |
0.577 |
9.554 |
0.669 |
81.76 |
21.3% |
5.20 |
9.081 |
0.573 |
9.601 |
0.666 |
81.39 |
21.2% |
5.18 |
9.013 |
0.575 |
9.528 |
0.667 |
81.55 |
21.1% |
5.16 |
8.998 |
0.574 |
9.520 |
0.667 |
81.34 |
21.0% |
5.14 |
8.966 |
0.573 |
9.504 |
0.668 |
80.96 |
Intensity (W/m2) |
Vpm |
Ipm |
|---|---|---|
1000 |
1.000 |
1.000 |
900 |
0.995 |
0.907 |
800 |
0.990 |
0.802 |
600 |
0.989 |
0.604 |
400 |
0.963 |
0.402 |
